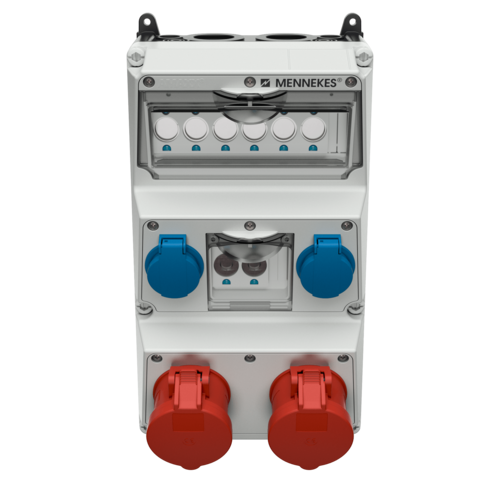

AMAXX receptacle combination 930014
With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 32 A, 5 p, 400 V
SCHUKO®
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
Du kan administrere vores produkter i forskellige lister i indkøbsliste/indkøbskurvområdet.
Giv den nye liste et navn
- Indtast venligst et listenavn
- Listenavnet findes allerede
- Indtast venligst et gyldigt listenavn
Tekniske specifikationer
AMAXX receptacle combination 930014
| CEE 32 A, 5 p, 400 V | 2 |
|---|---|
| SCHUKO® | 2 |
| Sammensætning |
|
| Præ-sikring maks. | 100 A |
| InA | 52 A |
| RDF | 0.65 |
| Tilslutning / Forsyningsledning |
|
| Beskyttelsestype | IP44 |
| Kabinetmateriale | Plast |
| Vægt | 5005 g |
| Højde | 390 mm |
| Bredde | 225 mm |
