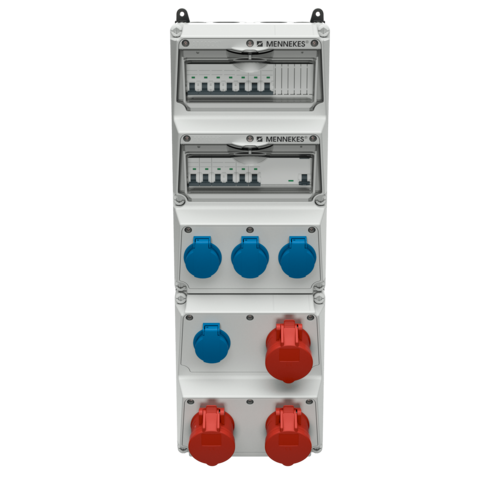

MENNEKES AMAXX receptacle combination 950003
MENNEKES AMAXX receptacle combination 950003 images3d

Vær venlig acceptere marketing-cookies for at se denne video.

Video

AMAXX receptacle combination 950003

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 16 A, 5 p, 400 V
SCHUKO®
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Varenr.950003
  • EAN4015394243236
  • Std. Pakke. 1 Antal.
Du kan administrere vores produkter i forskellige lister i indkøbsliste/indkøbskurvområdet.
Giv den nye liste et navn
  • Indtast venligst et listenavn
  • Listenavnet findes allerede
  • Indtast venligst et gyldigt listenavn

Tekniske specifikationer

AMAXX receptacle combination 950003

CEE 16 A, 5 p, 400 V 3
SCHUKO® 4
Sammensætning
  • 1 RCD 63 A, 4 p, 0.03 A
  • 3 MCB´s 16 A, 3 p, C
  • 4 MCB´s 16 A, 1 p, C
Præ-sikring maks. 63 A
InA 52 A
RDF 0.65
Tilslutning / Forsyningsledning
  • for 2 cables up to 5 x 25 mm²
Beskyttelsestype IP44
Kabinetmateriale Plast
Vægt 8660 g
Højde 650 mm
Bredde 225 mm

Video

AMAXX receptacle combination 950003

Vær venlig acceptere marketing-cookies for at se denne video.

Video

Retningslinjer

AMAXX receptacle combination 950003

Passende tilbehør

AMAXX receptacle combination 950003

MENNEKES CombiTOWER® 15740

CombiTOWER®

Varenr. 15740

i rustfrit stål (materiale 1.4301), materiale 1.4571 på anmodning, med aflåselig dør, med aftageligt dæksel og frontplade, mål (H x B x D): 1043 x 254 x 415 mm, blank finish

MENNEKES Weather shield 15683

Weather shield

Varenr. 15683

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 758 x 254 x 280 mm
