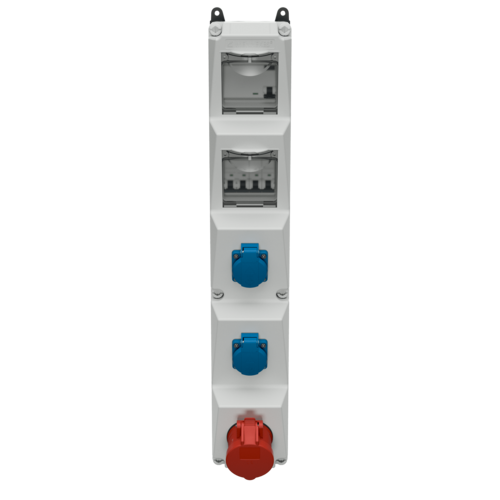

MENNEKES AMAXX s receptacle combination 960003
MENNEKES AMAXX s receptacle combination 960003 images3d

Vær venlig acceptere marketing-cookies for at se denne video.

Video

AMAXX s receptacle combination 960003

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

CEE 16 A, 5 p, 400 V
SCHUKO®
  • pre-wired for installation
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Varenr.960003
  • EAN4015394243335
  • Std. Pakke. 1 Antal.
Du kan administrere vores produkter i forskellige lister i indkøbsliste/indkøbskurvområdet.
Giv den nye liste et navn
  • Indtast venligst et listenavn
  • Listenavnet findes allerede
  • Indtast venligst et gyldigt listenavn

Tekniske specifikationer

AMAXX s receptacle combination 960003

CEE 16 A, 5 p, 400 V 1
SCHUKO® 2
Sammensætning
  • 1 RCD 40 A, 4 p, 0.03 A
  • 1 MCB 16 A, 3 p, C
  • 1 MCB 16 A, 1 p, C
Præ-sikring maks. 63 A
InA 32 A
RDF 1
Tilslutning / Forsyningsledning
  • for 1 cable up to 5 x 10 mm²
Beskyttelsestype IP44
Kabinetmateriale Plast
Vægt 5210 g
Højde 650 mm
Bredde 112.5 mm
